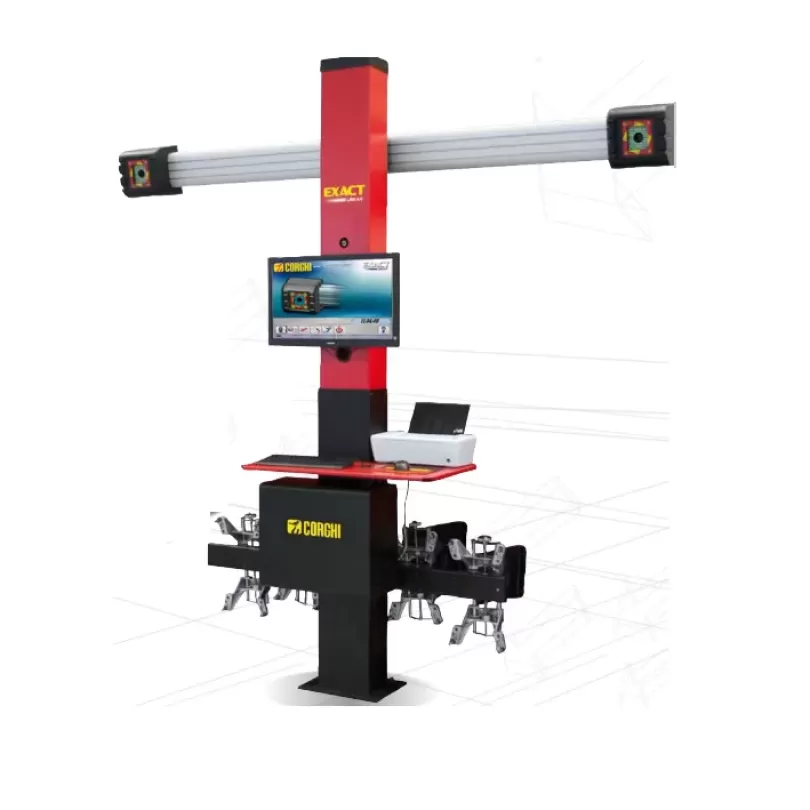

3D WHEEL ALIGNER with 2 camera

- The camera axis can move up and down according to the lifting movement of the bridge.
- Target panels with high resolution.
- The software is easy to use with data banks of many car manufacturers.
- Instructions for performing operations using 3D simulation on the screen.
- Manual vehicle data entry feature
- Has a feature to visually check the iron condition to assess the current iron deviation of the vehicle.
- You can choose to print color or black and white test results (Need to buy an additional printer)
- Integrated camera to record live images, supporting directions for vehicles on the bridge. (buy more)
- Trolley to hold reflectors, clips and accessories (additional purchase)
Specifications:
* Measuring range:
- Total toe: ± 20°
- Half toe: ± 10°
- Camber: ± 10°
- Caster: ± 30°
- King pin: ± 30°
- Set back: ± 22°
- Thrust angle: ± 10°
- Steering difference: ± 20°
* Weight of computer cabinet: 11 kg
* Weight of camera mounting beam: 26 kg
* Cylinder weight: 66 kg
* Steering disc not included.
Standard accessories include:
- 01 set: computer, monitor, mouse, keyboard and printer
- Camera moving mechanism (Code: 8-34900020)
- 04 reflective panels.
- 04 clamps size 10 - 21"
- 04 adapter sets for rim clamps up to 26"
- 01 set of steering lock and brake pedal.
