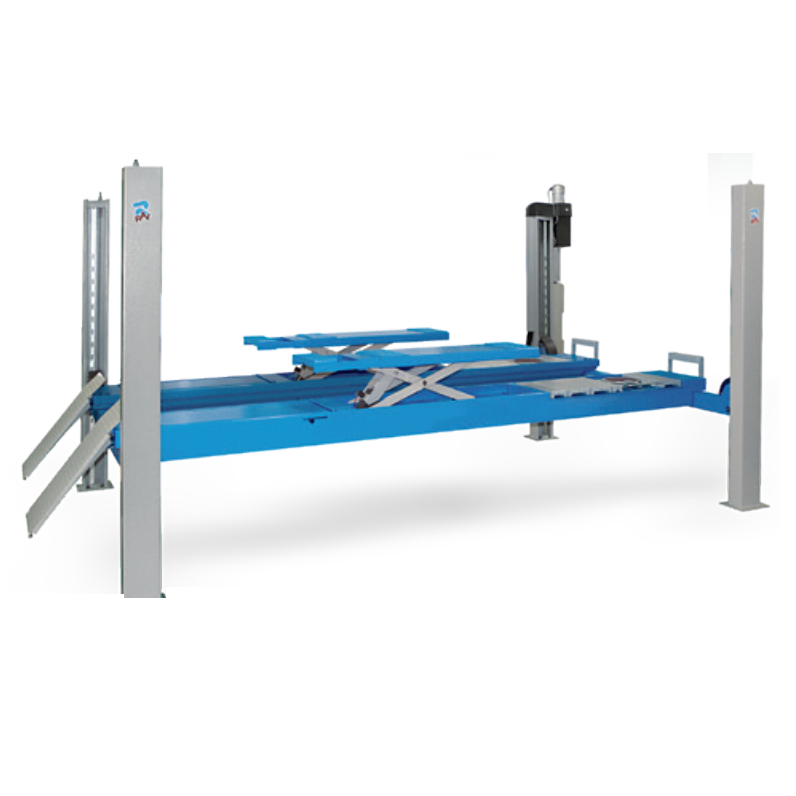

Model: RAV 4402SI

Specifications:

- Lifting load: 4000 Kg

- Lifting height: 230 - 1985 mm

- Power source: 380/50 V/Hz

- Motor capacity: 2.6 Kw

- Lift table length: 4460 mm

- Clearance width: 2470 mm

- Load capacity of auxiliary lift table (auxiliary jack): 3500 Kg

- Distance between 2 columns: 2800 mm

Price: Contact

4-post lift to check wheel angle with side table

Characteristic:
- Hydraulic cylinder structure is arranged inside the column for complete protection and high aesthetics
- Heavy-duty galvanized cable and self-lubricating large vertical flow mechanism
- The distance between the two lifting table surfaces can be adjusted from 1175 max - 825 min to best suit the vehicle width
- Automatic mechanical safety locking mechanism (100mm step). Lock immediately when cables are duplicated or damaged
- Warning when the lower bridge nearly touches the floor and control circuit system with low voltage 24V to ensure user safety
Standard accessories:
- RAL5015 Blue paint code

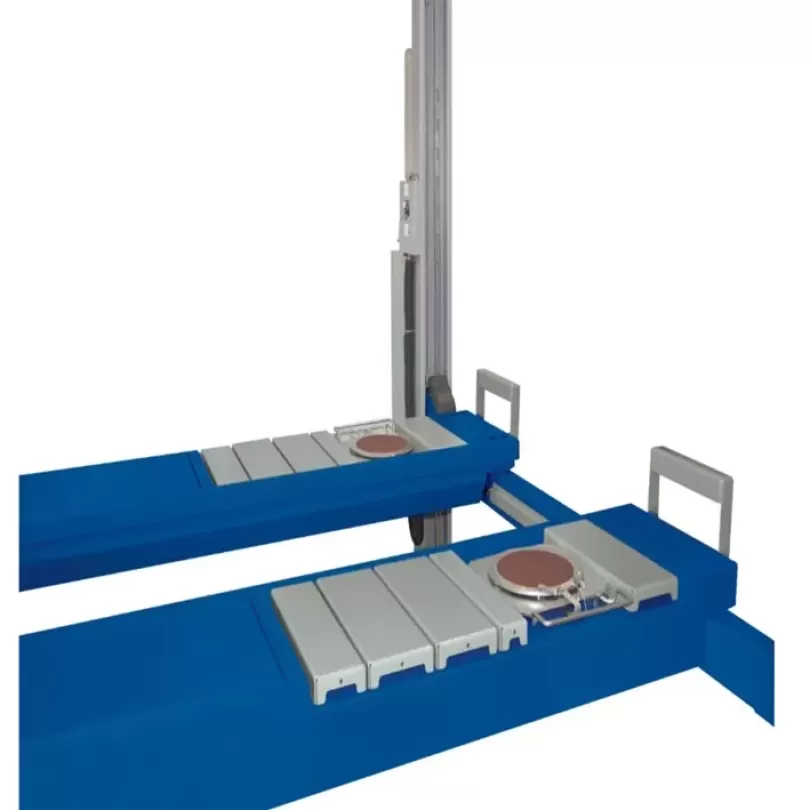

- Set of 02 steering discs (Cod.S110A7)
Includes steering wheel set

Specifications:

- Lifting load: 4000 Kg

- Lifting height: 230 - 1985 mm

- Power source: 380/50 V/Hz

- Motor capacity: 2.6 Kw

- Lift table length: 4460 mm

- Clearance width: 2470 mm

- Load capacity of auxiliary lift table (auxiliary jack): 3500 Kg

- Distance between 2 columns: 2800 mm
